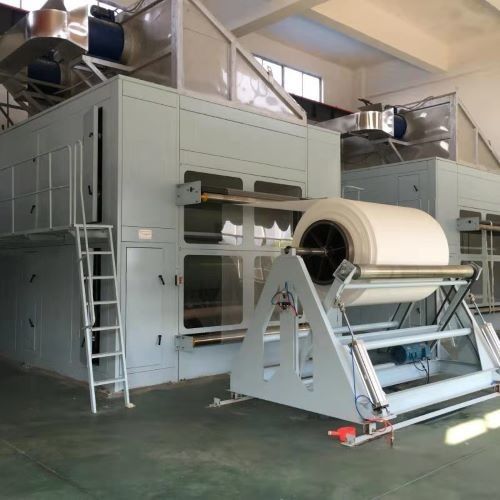

Medical Gauze Production Line , Medical Gauze Drying Machine

Medical Gauze Production Line , Medical Gauze Drying Machine
Medical Gauze Production Line , Medical Gauze Drying Machine Medical Gauze Production Line , Medical Gauze Drying Machine Medical Gauze Production Line , Medical Gauze Drying Machine Medical Gauze Production Line , Medical Gauze Drying Machine

Large Image :  Medical Gauze Production Line , Medical Gauze Drying Machine

Product Details:
Place of Origin: CHINA
Brand Name: JINCHEN
Certification: ISO
Model Number: DL222-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 50-60 DAYS
Supply Ability: 1 SET PER 50 DAYS
Detailed Product Description
Product Name: Medical Gauze Drying Machine Working Width: 1600mm
Speed: 0 ~ 150m/min Transmission: AC Motor With Frequency Inverter
High Light:

medical gauze rolling machine

,

medical gauze drying machine

Medical Gauze Drying Machine



Main Features



 Rolling device can be controlled respectively. It is equipped with pressure display meter, linear pressure 300N/CM, yarn residual rate is about    60%, active roll (stainless steel roll), passive roll diameter (outsourcing NBR), bending roll, spray pipe and safety device are installed in front of rolling point. The outer circle of the rolling barrel is grinded, and a wading plate is set under it to prevent the water droplets from splashing out.



 There are moving door closure on both sides of the dryer and exhaust steam and humidity device on the top to meet the requirements of gauze cleaning production to prevent dripping, while the front and back parts of the dryer are not closed to monitor the operation of the machine.



Drying drum of dryer should be able to withstand steam pressure of 4kg/cm2, working pressure of 2.5-4kg/cm2 and cylinder material of stainless steel. It has been proved by the national technical supervision department that the application of Teflon on the surface of four drying drums at the feeding place is conducive to clean production, with one rubber bending roll and one expanding roll each.



Equipped with advanced pressurized photoelectric tracking winder, it can ensure that the edge of the cloth is uniform (+1-3.5mm) and provide an effective guarantee for saving material in the back slitting process. After winding, the yarn is neat, the warp and weft yarns are straight, no wrinkle, no weft inclination and no damage. The maximum diameter of winding is 680 mm.





Technical Data

○ Machine nominal width: 1600mm

○ Mechanical speed: 0 ~ 150m/min

○ Process speed: 100 ~ 120m/min

○ Maximum roll diameter of cloth feeding: Φ1760mm

○ Maximum roll diameter of cloth out: Φ1200mm

○ Drying: Φ570 stainless steel drying cylinder,15 pcs

○ cooling: Φ570 stainless steel cooling roll,1 pc

○ Transmission: AC motor drive and frequency inverter control



Schematic of Drying machine



Medical Gauze Production Line , Medical Gauze Drying Machine 0
