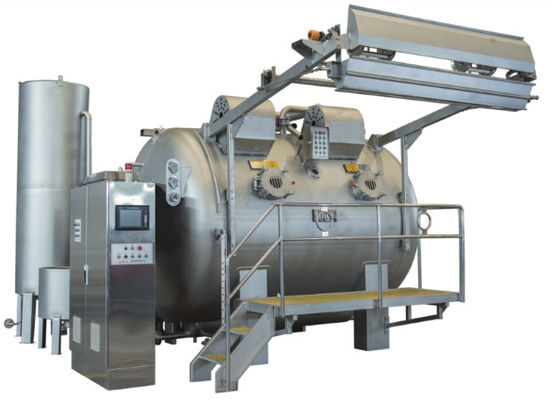

Large Image :  Low Liquor Ratio Dyeing Machine , High Temperature Overflow Dyeing Machine

Product Details:

Place of Origin: CHINA
Brand Name: JINCHEN
Certification: ISO
Model Number: JC-OR

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Delivery Time: 50 DAYS
Payment Terms: L/C, T/T
Supply Ability: 1 SET PER 50 DAYS
Contact Now
Detailed Product Description
Product Name: High Temperature Overflow Dyeing Machine Machine Type: Horizontal, Cylindrical
Bath Ratio Range: 1:4.5~1:6 Use Steam Pressure: 0.4-0.6 Mpa
Control System: SETEX707,Germany Fabric Range: 70~400gsm

JC-OR High temperature Overflow Dyeing Machine



Introduction:

The JC-OR high temperature overflow dyeing machine is used built-in cloth lifting roll and double nozzle structure, not only reduce the tension in the fabric circulation, but also have a higher level dyeing degree of single cycle. Compared with traditional jet dyeing machine, the fabric can be fully relaxed and retracted, the fabric size is stable and the cloth surface is flat after dyeing and processing.



This machine is suitable for the dyeing, pre-treatment and post-treatment of pure and blended knitwear or woven fabric with natural and synthetic fabrics.



Weight range of fabric: 70-400g/m².



Main Technical Parameters

  •  Machine form: horizontal cylindrical form
  •  Maximum working temperature (゜C): 135
  •  Maximum working pressure (MPa): 0.30
  •  Number of tubes: 1,2,3,4,6,8
  •  Bath ratio range: 1:4.5 ~ 1:6
  •  Maximum capacity of single tube (kg): 300
  •  medium - thick fabric
  •  Fabric linear speed (m/min): 70 ~350
  •  Use steam pressure (MPa): 0.4~0.6

Main Technical Features:

  • Double nozzles can be used to perform different exchange forms according to different fabric characteristics.
  • The fabric has a higher level dyeing property through two strong exchange with dye liquor in single cycle.
  • The fabric has relaxing and retraction process in the guide tube to eliminate internal stress.
  • Low height of inner cloth lifting roll, low tension on fabric.
  • The fabric is projected upward in an oblique way, and the cloth putting effect in forward and backward direction can be achieved naturally under the action of gravity.

Optional configuration

  • Preheating water auxiliary cylinder
  • Various dosing charging bucket
  • Automatic hair remover



Main Specifications of machine

Low Liquor Ratio Dyeing Machine , High Temperature Overflow Dyeing Machine



Standard

Model Number of tubes Max. Capacity(kg) Dimension
L(mm) W(mm) H(mm)
JC-OR-1 1 250 3800 6300 3400
JC-OR-2 2 500 5100 6400 3400
JC-OR-3 3 750 6500 6500 3400
JC-OR-4 4 1000 7800 6500 3400
JC-OR-6 6 1500 9000 6600 3400
JC-OR-8 8 2000 10500 6800 3400



High Capacity

Model Number of tubes Max. Capacity(kg) Dimension
L(mm) W(mm) H(mm)
JC-OR-1 1 300 4000 6300 3400
JC-OR-2 2 600 5500 6400 3400
JC-OR-3 3 900 7000 6500 3400
JC-OR-4 4 1200 7500 6500 3400
JC-OR-6 6 1800 10000 6600 3400
JC-OR-8 8 2400 12000 6800 3400
