|Product Name:||Rope Open Slitting Washing Squeezing Machine||Working Width:||1200-2200mm|
|Working Speed:||0-100m/min||Motor Power:||22kw|
|Control:||Siemens Touch Screen+ PLC ,Gremany||Inverter:||Siemens,Germany|
|Slitting Head:||EL, Germany Optional||Washing Unit:||Single Tank+ Single Filter Or Four Tank + Two Filters|
air turning machine,
textile finishing equipment

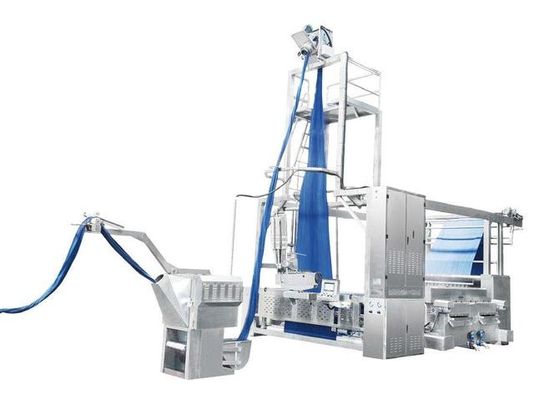

Fabric Finishing Machines , Rope Open Slitting Washing Squeezing Machine
This machine is suitable for slitting, opening, washing and squeezing of kint fabric after dyeing .
I. Technical characteristics
1. The functions of slitting, opening, washing and squeezing are synthesized into one process, which simplifies the operation process, saves
manpower greatly and improves the production efficiency.
2. Any kind of thick or thin cloth can adjust tension and on-line distribution and spread arbitrarily.
3. There are two kinds of slitting head: A. Semi-automatic manual knob alignment
B. Automatic electrical eye alignment.
4. Automatic untwisting and infrared automatic alignment to realize high-speed automation of untwisting and opening.
5. Configuration l washing function, automatic filtering and cleaning of wool and excrement, recycling water, saving environmental protection.
6. The squeezer is made of special material rubber rolls, and the hydraulic rolling allowance is up to 70%.
II. Technical Data
-Speed range: 0-100m/min
-Installation power: 22KW f
-Machine automation is controlled by a Siemens P.L.C
