Product Details:
Payment & Shipping Terms:
|
| Product Name: | Spray Hank Yarn Dyeing Machine | Capacity: | 50kgs |
|---|---|---|---|
| Dyeing Tube: | 4 Tubes ,Length:1500mm | Working Temp.: | 98 ° C |
| Control System: | LCD Dyeing Computer | PLC: | Schneider |

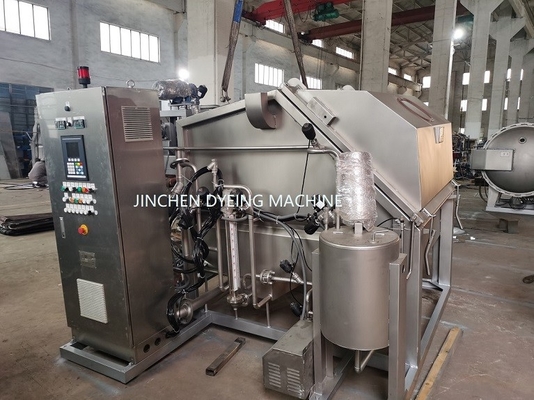

Spray Hank Yarn Dyeing Machine Capacity 50kgs
| 1 | Dyeing Tube Spec. | 4 Tubes, Length:1500mm |
| 2 | Capacity | 50 kgs |
| 3 | Power | 5.2kw |
| 4 | Main pump motor | Wannan (SKF bearing) |
| 5 | Opening method | Horizontal opening, and temperature control can be set to 85 ℃ safety protection |
| 6 | Safety device | Security chain institutions; main cylinder with safety valve, overpressure automatic discharge |
| 7 | Dosing system | Equipped with a bearing positioning stirrer; with the function of heating ,water, drainage, reflux ,feeding, recoil and pipe cleaning device |
| 8 | Control box | Made of stainless steel |
| 9 | Solenoid valve | AIRTEC |
| 10 | Electrical components | PLC and AC contactor : Schneider,others are Chint |
| 11 | Dyeing comput | HG9026 LCD computer |
