Dyeing Machine Parts Regulating valve

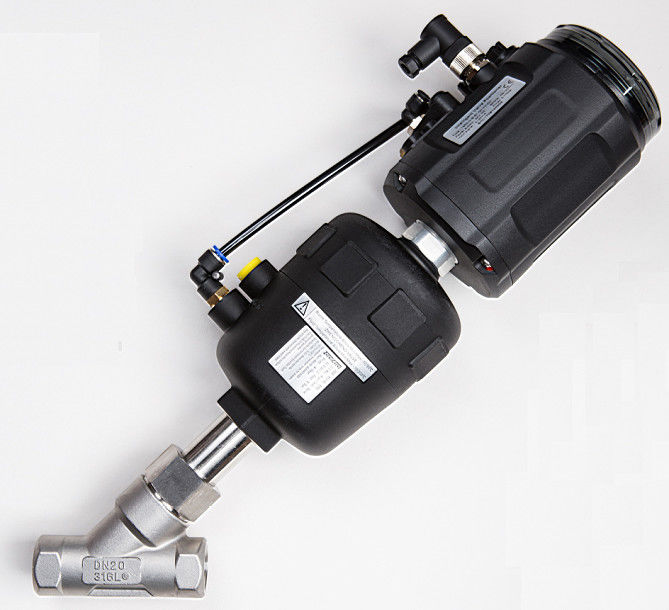

2900 Regulating Valve with locator

The model 2900 is a regulating valve with locator. Location sensor, electric control system and micro-processor on the valve are used to for continuous location control, also the internal functions are used for continuous process control(PID). Lt is widely used for textile,printing,water treatment,food processing,medical technology and other industries.

Technological parameters

Bonnet:                                      CF8M

Power voltage:                          24V DC±10%,≥1A

Power:                                      <5W

Input signal:                              4~20mA

Stuffint box:                               self-adjusting in PTFE

Plug:                                          CF8M

Nominal Diameter (DN):           DN15-DN50

Actuator Size(ø):                       PA6  80-125

Room Temperature:                  0℃~+55℃

Fluid Temperature:                   -20℃~+200℃

Feeding Pressure:                   0.3-6Bar

Connections:                            DIN PN25 Flange       G Thread Flange

For Fluid:                                  Fresh water, Foul Water, Sea water, Air, Steam
