Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Temperature And High Pressure Kint Fabric Dyeing Machine | Liquor Ratio: | 1:6-10 |
|---|---|---|---|
| Fabric Weight Range: | 50-600gsm | Control System: | Setex707 ,Germany |
| Frequency Inverter: | Danfoss | ||
| High Light: | high temperature high pressure dyeing machine,polyester dyeing pressure jet machine |
||

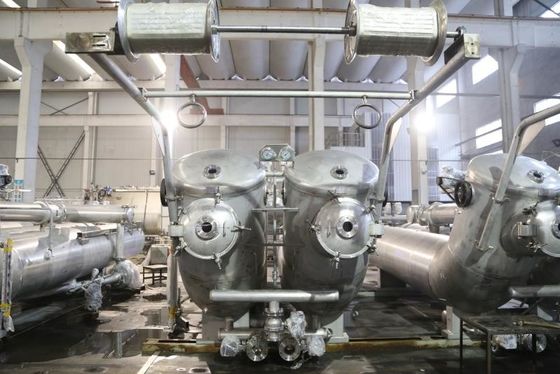

JCK High Temperature And High Pressure Kint Fabric Dyeing Machine
JCK High Temperature And High Pressure Dyeing Machine is an all-purpose dyeing machine suitable for knit fabrics from common knit fabrics to newly developed elastic fabrics, such as fabrics of elastic cotton, rib elastic viscose. elastic polyester, elastic nylon and rayon ,etc.
I. Main Features
·Low dyeing flow, appropriate cloth length, low liquor ratio.
Inner-put complex changing-diameter cloth-guiding tube.
·Options of nozzles of overflow and jet flow: Suitable for dyeing of various kinds of top grade cloth of 50-600g/m2
·Lower tension to minimum and effectively remove longitudinal creases.
·Low machine height, low tension, low shrinking ratio after dyeing, easy realization of finishing product hamming weight.
·Feeding system providing:
A.Programmable auto-feeding control system
·Analog dosing
·Automatic feeding system(Timing and quantification)
·Valve control for selection of fast and slow adding
B.Water level auto detection and control device
C.Powerful stir by circulation pump
D.Automatic wash tank and related pipe
II. Technical Parameters
| Item | JCK-50 | JCK -100 | JCK-250 | JCK-500 | JCK-1000 |
| Number of Chamber | 1/1 | 1/1 | 1/2 | 2/4 | 4/8 |
| Max Capacity(kg) | 50 | 100 | 250 | 500 | 1000 |
| Liquor ratio | 1:6-10 | ||||
| Max working temperature | 140℃ | ||||
| Speed(rpm) Jet Flow | 0-450 | ||||
| Overflow | 0-250 | ||||
| Heating rate(min) | 35 | ||||
| Cooling rate(min) | 30 | ||||
| Total motor power(kw) | 11.6 | 11.6 | 20.2 | 37.4 | 68.3 |
| Length | 6000 | 7500 | 8090 | 8090 | 8090 |
| Width | 1350 | 1350 | 1850 | 3400 | 6050 |
| Height | 2350 | 2350 | 2700 | 2700 | 2700 |
