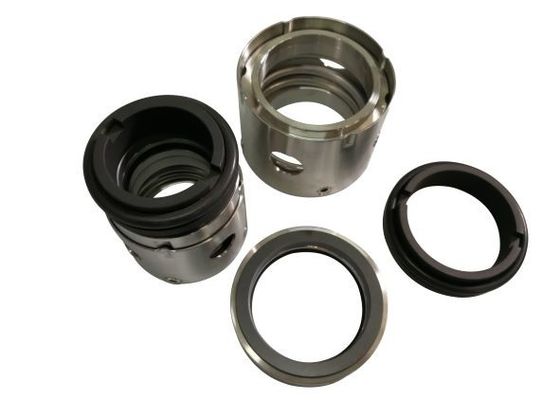

O Ring Mechanical Seal For Dyeing Machine Water Pump

O Ring Mechanical Seal For Dyeing Machine Water Pump
O Ring Mechanical Seal For Dyeing Machine Water Pump O Ring Mechanical Seal For Dyeing Machine Water Pump O Ring Mechanical Seal For Dyeing Machine Water Pump O Ring Mechanical Seal For Dyeing Machine Water Pump

Large Image :  O Ring Mechanical Seal For Dyeing Machine Water Pump

Product Details:
Place of Origin: CHINA
Brand Name: JINCHEN
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 50-60 DAYS
Supply Ability: 1 SET PER 50 DAYS
Detailed Product Description
Features: Corrosion Resistance Product Name: Mechanical Seal/dyeing Machine Spare Parts/textile Machine Spare Parts
Material: Stainless Steel Size: Standard Or Customize
Warranty: 12 Months Advantage: Environmental Protection And Energy Saving, Reducing Dyeing Cost
High Light:

dyeing machine accessories

,

pneumatic cut off valve

Mechanical seal For Dyeing Machine Pump



Mechanical seal is a typical multiple springs, standard unbalanced mechanical seal with various kinds of materials and face combination which is in conformity with DIN24960 ,ISO3069 ,GB6556 standards ,typically used in process pumps in order to meet the requirements of industry.



Material:

- Stationary ring(Ceramic/SIC /TC)

- Rotary ring (Carbon/SIC/TC)

- Secondary seal (NBR/EPDM/)

- Spring & other parts (SUS304/SUS316)



Operating Limits:

1. Pressure in the sealed chamber:0-1.2MPa

2. Temperature in the sealed chamber:

     -20℃~+80℃(NBR)

     -20℃~+80℃(FPM)

     -80℃~+250℃(PTFE V ring )

3. Linear Velocity:≤3000r/min

4. Medium: water, oil and minor corrosive liquid
